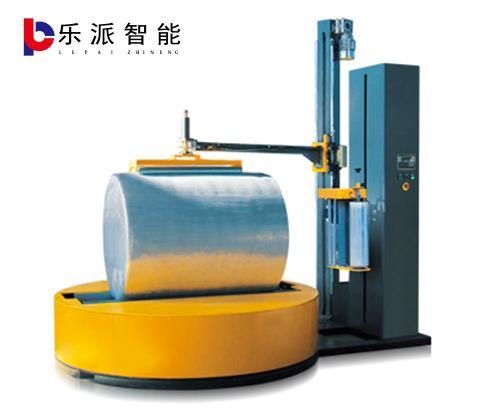

LP20RP cylinder winding machine (with top pressing)

  • Detail
  • Parameters

Product Introduction:


Cylindrical winding packing machine carries on the axial packing to the cylindrical object, realizes the integral wrapping of the object. It is beneficial to the storage, transportation and turnover of goods, and has the function of dustproof, moisture-proof and cleaning.


Its packing cost is low, the efficiency is high, exaltation packing class. At the same time, according to the actual needs of packaging, can choose cylinder - tray dual type, automatic ejecting type, automatic on-line equipment.



Scope of application and advantages:


· Suitable for the packaging of web, non-woven fabrics and other products


· Achieve a full range of coating of goods





                  High quality products · Start with details





Product technical parameters:


model

LP3-P

Wrapped around the specifications

The diameter

Ф（500-1500）

width

500-1600

Overall dimensions

L×W×H

3200×2000×2200mm

Turntable diameter

φ2000 mm

Turntable bearing

2000kg

Support drive mode

Nylon roller + chain

Turntable height

460/530mm

power

1.5kw；0.4kw；0.37kw；0.35；380VAC/50HZ/20A

The weight

1080kg

The packing efficiency

20-40 pieces/hour

Rotary speed

0-12 RPM variable frequency adjustable

The membrane system

Pre-stretching film frame, pre-stretching up to 250%, automatic film feeding, film feeding speed can be adjusted

Control system

PLC control, the number and number of winding layers can be adjusted

Equipment composition

Formwork frame mechanism; Roller and driving mechanism; Turntable mechanism; Roof pressing mechanism (optional); Ejector mechanism (optional)

Ejection function

optional

Coping function

optional

Pneumatic system

0.6-0.8MPa；1000ml/min

note

Special specifications can be customized, please contact the company's technical engineers;

The values in the table are for reference only, and are subject to change without prior notice. Please contact our technical engineer for detailed information.
