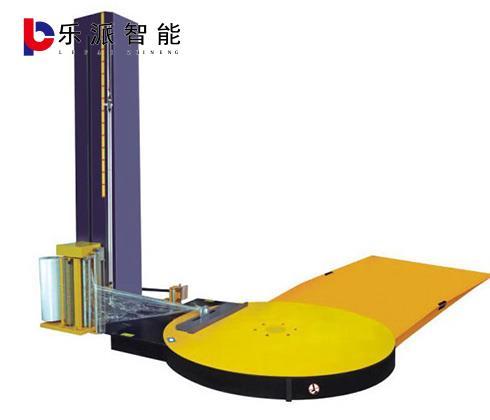

LP35 automatic remote control winding machine
LP35 automatic remote control winding machine
LP35 automatic remote control winding machine
- Detail
- Parameters
Product Introduction:
The automatic remote control winding machine is equipped with automatic film loading, film breaking, mucosal mechanism and remote control device. The operator can operate automatically on the forklift or by remote control. The whole film is automatically and continuously packaged, which can effectively reduce labor intensity and improve work efficiency. The dynamic pre-stretching film automatically delivers the film, the stretching ratio is up to 250%, effectively saving the stretch film.
Sandwich membrane and broken membrane structure can be selected to improve work efficiency
Scope of application and advantages:
· Single winding machine with the highest degree of automation
· Automatic film loading, film breaking and mucous membrane, remote control
· Save stretch film
High quality products · Start with details
Product technical parameters:
Wrap film specifications | （500-1200）mm×(500-1200)mm（L×W) |
Packing height (Max) | 2100 / 2400 / 2800mm |
The packing efficiency | 20-40 litres/hour |
Turntable speed | 0-14rpm speed is adjustable with frequency conversion |
Turntable diameter | 1800mm |
Turntable height | 82mm |
Turntable load bearing (Max) | 2000kg |
Upper film breaking mechanism | Automatic membrane, broken membrane, mucosa |
The membrane system | Pre-stretching film frame, pre-stretching up to 250%, automatic film feeding, frequency control |
Rise and fall pillar | Double chain structure, adjustable lifting speed by frequency conversion |
Control system | PLC controlled, the number and number of winding layers can be adjusted, the turntable can reset automatically, and the height of the goods can be measured automatically |
Machine weight (Max) | 750kg |
Power/voltage | Turntable 0.75KW, membrane frame 0.2KW, column 0.37kW /AC220V special specifications can be customized |
