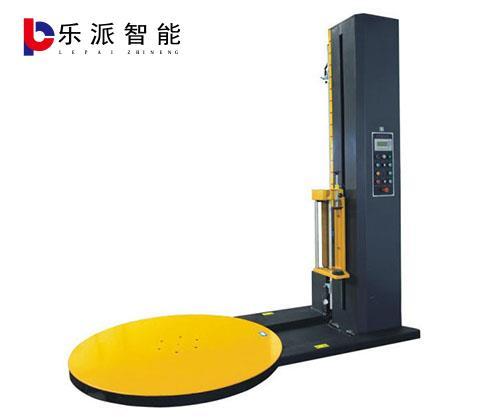

LP115 automatic tensile winding machine

LP115 automatic tensile winding machine

share

LP115 automatic tensile winding machine

  • Detail
  • Parameters

Product Introduction:


Automatic prestretch winding machine is used in bulk cargo container transportation and bulk pallet packaging. Widely used in glass products, hardware tools, electronic appliances, paper, ceramics, chemical, food, beverage, building materials and other industries. It can effectively improve the logistics packaging efficiency and reduce the loss in the process of transportation


Sandwich membrane and broken membrane structure can be selected to improve work efficiency



Scope of application and advantages:


· One chain completes the wrapping operation


· Suitable for warehouse use


· Photoelectric self-dynamic measurement of cargo height


            High quality products · Start with details



Product technical parameters:


Wrap film specifications

（500-1200）mm×(500-1200)mm（L×W)

Packing height (Max)

   2100 / 2400 / 2800mm

The packing efficiency

   20-40 litres/hour

Turntable speed

0-14rpm speed adjustable with frequency conversion

Turntable diameter

   1500 / 1650 / 1800mm

Turntable height

82mm

Turntable load bearing (Max)

2000kg

Upper film breaking mechanism

Automatic membrane, broken membrane, mucosa

The membrane system

Pre-stretching film frame, pre-stretching up to 150%, automatic film feeding, frequency control

Rise and fall pillar

Double chain structure, adjustable lifting speed by frequency conversion

Control system

PLC controlled, the number and number of winding layers can be adjusted, the turntable can reset automatically, and the height of the goods can be measured automatically

Machine weight (Max)

680kg

Power/voltage

Turntable 0.75KW, membrane frame 0.2KW, column 0.37kW '/AC220V

Special specifications can be customized
