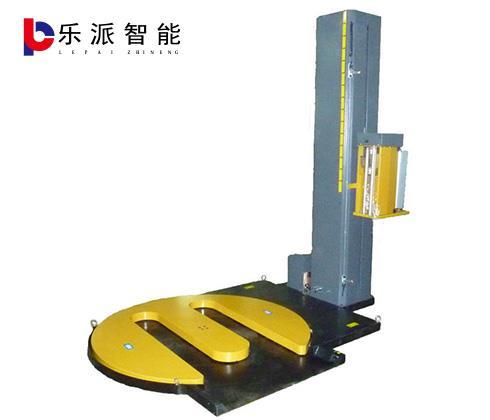

Lp116-m automatic M-winding machine

  • Detail
  • Parameters

Product Introduction:


Automatic prestretch winding machine is used in bulk cargo container transportation and bulk pallet packaging. Widely used in glass products, hardware tools, electronic appliances, paper, ceramics, chemical, food, beverage, building materials and other industries. It can effectively improve the logistics packaging efficiency and reduce the loss in the process of transportation.



Sandwich membrane and broken membrane structure can be selected to improve work efficiency



Scope of application and advantages:


· M-type turntable facilitates forking of goods


· Minimum footprint


· Convenient parameter design, one-button completion of wrapping film






            High quality products · Start with details



Product technical parameters:


Wrap film specifications

（500-1200）mm×(500-1200)mm（L×W)

Packing height (Max)

   2100 / 2400 / 2800mm

The packing efficiency

   20-40 litres/hour

Turntable speed

0-14rpm speed is adjustable with frequency conversion

Turntable diameter

   1800mm

Turntable height

82mm

Turntable load bearing (Max)

2000kg

Upper film breaking mechanism

Automatic membrane, broken membrane, mucosa

Upper film breaking mechanism

Pre-stretching film frame, pre-stretching up to 250%, automatic film feeding, frequency control

Rise and fall pillar

Double chain structure, adjustable lifting speed by frequency conversion

Control system

PLC control, the number and number of winding layers can be adjusted, the turntable can reset automatically, and the height of the goods can be measured automatically

Machine weight (Max)

700kg

Power/voltage

Turntable 0.75KW, membrane frame 0.2KW, column 0.37kW /AC220V special specifications can be customized
