Product Introduction:

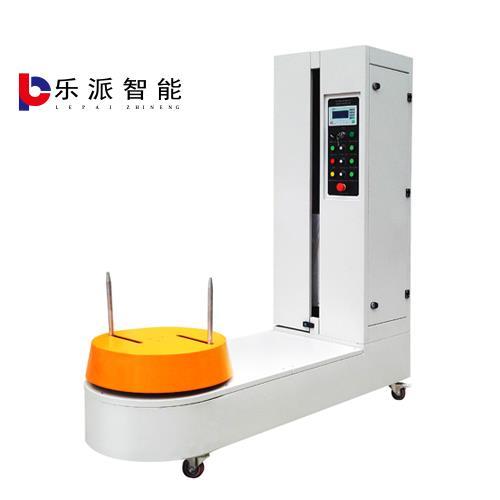

The bagging charter plane is designed for packing luggage, single cargo and small cargo in airports, stations, wharves, logistics points and other places. Can be wrapped around the object in all directions, prevent luggage and cargo damage, moistureproof, dirty, as well as be replaced and other phenomena, so as to play a protective role in the process of transportation. The device can be moved, and the operator places the item on the turntable and adjusts the position of the vertical lever according to the size of the item, so that the item can be placed on the turntable smoothly. Then the operator presses the start button of the operation panel, the equipment will be automatically packaged and the height of the item will be determined automatically.
Scope of application and advantages:
· Used for packing passengers' luggage and parcels, mainly used in airports and other places
· Automatic wrapping, easy to use, counter to count the number of wrapping bags
Product technical parameters:
Winding specifications | L(400-1000)* W(180-600) * H(300-850) |
Turntable speed | 25rpm |
Turntable weighing | 110kg max |
The membrane system | Dynamic pretension film frame 250% |
Lifting speed of membrane frame | 3m/min |
Power supply/power | 1PH 220VAC 50HZ 20A 1.0KW |
Overall dimensions | L1625*W650*H1480 |
The weight | 220KG |
